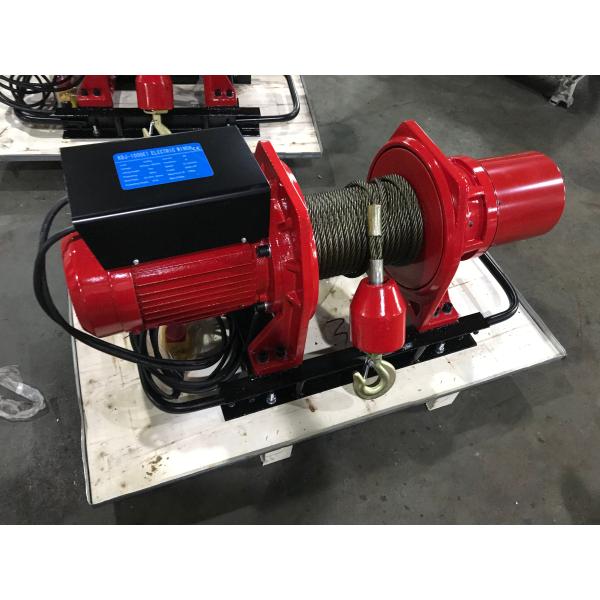

200Kg Lifting 3 Phase Electric Wire Rope Winch 220v

Brand Name : JCYC

Model Number : KDJ

Certification : CE&ISO

Place of Origin : China

MOQ : 1 unit

Price : USD negotiate per unit

Payment Terms : L/C, T/T, Western Union, D/P, D/A, MoneyGram

Supply Ability : 500 pcs per month

Delivery Time : 10 -15 working days

Packaging Details : Plywood case

Product name : 3 Phase Electric Wire Rope Winch 220v - 440v 200Kg - 10000 Kg Capacity

Lifting Weight : 200kg to 10000kg

Rope length : 0-100m or at request

Motor : 4pol 6pol

Power supply : 3 phase 220V/380V/415V/440V/480V 50/60HZ

Max. Cap : 10000 kg

Contact Now

3 Phase Electric Wire Rope Winch 220v - 440v 200Kg - 10000 Kg Capacity

Product Description
KDJ Multifunctional Electric Hoist is a steel wire rope hoist for lifting goods, the capacity is from 0.3T to 1T, the length of wire rope is from 30M to 60M more,the usage is pulling and lifting,except exclusive-use, also can match-use with electric trolley and plain trolley, geared trolley, these trolleys with simple structure, light weight, easy to load and unload. Be widely used in warehouse, construction and many kinds of producing-line.
The product has the characteristic brake promptly,small volume,light, compact, convenient and easy to maintain.

Product parameters

Model Load rated (kg) Speed M/min Motor hpxp Voltage Lifting Wire Rope G/ N.W. Packing size
Freq. Height φmmxm (KG) cm
　 (M) 　 　 　
KDJ-200E 200 10-15 0.8x4 110-240v 1ph 50/6hz 29 6x30 36.5//35.2 58×33×31
12-18
KDJ-250E 250 10-15 1.0x4 29 6x30 41/39.5 61×33×32
12-18
KDJ-300E 300 10-15 1.5x4 29 7x30 47/45.5 64×33×32
12-18
KDJ-300E1 300 10-15 1.5x4 220-440v 3 ph 50/60hz 29 7x30 50/48 64×33×32
12-18
KDJ-500E1 500 12-18 2.5x4 58 9x60 156/139 104×51×62
KDJ-750E1 750 12-18 3.5x4 58 9x60 167/150 104×51×62
KDJ-1000E1 1000 12-18 5x4 　 11x60 178/161 104×51×62
KDJ-2200E1 2200 7-12.5 7.5x4 97 16x100 500/450 156×70×81
KDJ-3200E1 3200 6.3-8.8 7.5x6 97 18x100 550/500 156×70×81
KDJ-3500E1 3500 6.3-8.8 10x4 140 18 x143 600/550 156×70×81
KDJ-5000E1 5000 8.0-12 15x4 192 22.4 x200 2700/2580 210×120×135
KDJ-10000E1 10000 7-11 30x4 235 32 x 250 3200/3080 230×120×135

FEATURES
Wire Rope Fixing: No escape of wire rope from the drum by means of P.T. screwdevice.
Drum Transmission: The shaft direct driving drum provides rope replacement and alternation of rotation with easy.
Electromagnetic: Designed for both static and dynamic loading. Brake will auromatically apply in the event of power cut. Large friction surfacr area. No adjustments or serving requirement.
Gear Box: Provides strengh, durability an non-worry of breakage of structure.
Induction Motor: IEC induction motor mounted provides reallity availability, cost effective and service spares availability world wide.
Ball Bearings: High efficient and heavy duty bearings provide long life.
Planetary and Anti-wear Gears: Compact, load sharing minimizes size, weight, and cost. Full depth spur gear planetary reductions ensure quiet and long life.
Machine Fixture: It is made of super armor plate, used for suspender, lifter and girder.

Facotry show

200Kg Lifting 3 Phase Electric Wire Rope Winch 220v

200Kg Lifting 3 Phase Electric Wire Rope Winch 220v

200Kg Lifting 3 Phase Electric Wire Rope Winch 220v

Questions before make quotation:
The more information you provide, the accurate solution we can prepare for you!
1-Capacity?
2-Lifting height?
3-what is lifting material? How about working environment?
4- Power supply and control voltage?
