ISO Standrad Electric Pulling Winch Lemon With Capacity 0.5 Ton - 10 Ton

Product Categories
Chongqing Shanyan Crane Machinery Co., Ltd.
Contact Now

ISO Standrad Electric Pulling Winch Lemon With Capacity 0.5 Ton - 10 Ton

Brand Name : JCYC

Model Number : JK

Certification : CE&ISO

Place of Origin : China

MOQ : 1 unit

Price : Negotiate

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 pcs per month

Delivery Time : 10 -15 working days

Packaging Details : Plywood case

Capacity : 1000-10000kg

Weight : 460-10000Kg

Color : Lemon Yellow

Lifting height : Alternative

Power Source : Electric

Lifting speed : Alternative

Contact Now

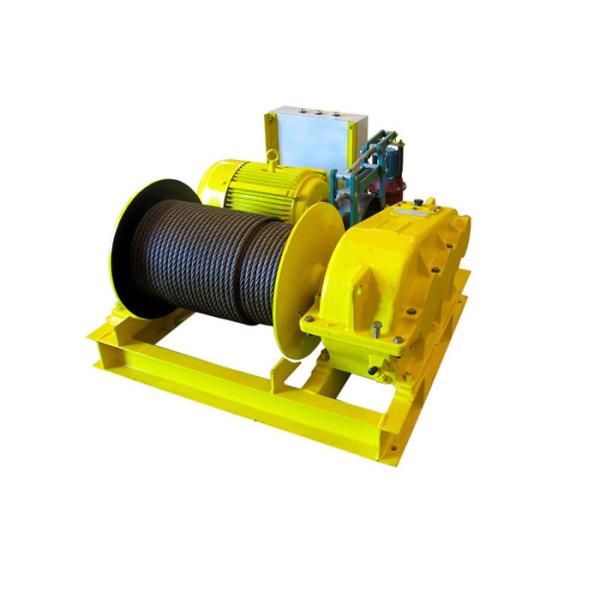

JK Electric Winch

ISO Standrad Electric Pulling Winch Lemon With Capacity 0.5 Ton - 10 Ton

JK Electric Winch
Model JK1 JK3 JK5 JK8 JK10
Line pull capacity (kg) 1000 3000 5000 8000 10000
Wire rope average speed (m/min) 30 30 28 20 19
Wire rope Dia.( mm): 9.3 15.5 21.5 26 30
Reduction box Type JZQ350 JZQ500 JZQ650 JZQ650 JZQ750
Transmission ratio 31.5 23.34 40.17 23.34 23.34
Drum (mm) Diameter(mm) 190 325 406 500 550
Length 360 520 840 900 1000
Capacity(m) 110 200 300 300 450
motor Type Y132M-4 YZR225M-8 YZR250M1-8 YZR250M1-6 YZR250M2-6
Power(kW) 7.5 22 30 37 45
Rotating speed(r/min) 1440 715 864 960 960
Hydraulic Brake YWZ-200/25 YWZ-200/25 YWZ-300/45 YWZ-300/45 YWZ-400
Dimension (cm) 945x97x60 147x140x95 186x166x95 240x180x110 250x190x120
Weight(kg) 460 1200 2700 4000 5000
