G80 US Type Master Link Assembly Welded Main Link and Welded Sub Link Up To 120ton

Name: G80 US Type Master Link Assembly Welded Main Link and Welded Sub Link Up To 120ton
Brand: JCYC
Price: 1 USD

Wholesale G80 US Type Master Link Assembly Welded Main Link and Welded Sub Link Up To 120ton from china suppliers

Brand Name : JCYC

Model Number : UTMLS

Certification : CE

Place of Origin : CHINA

MOQ : 100 PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 pcs / week

Delivery Time : 30 working days

Packaging Details : Carton

Product : G80 U.S. Type Master Link Assembly

Material : Alloy Steel

Max. Cap. : 120 ton

Min. Cap. : 4 ton

Safety factor : 4:1

Color : As per request

Contact Now

G80 US Type Master Link Assembly Welded Main Link and Welded Sub Link Up To 120ton

Technique parameters:

WLL ton	Breaking load ton	Φa mm	B1 mm	C1 mm	Φb mm	B2 mm	C2 mm	Weight kg
4	16	20	140	70	14	85	40	1.6
6	24	22	160	90	14	85	45	2.1
8	32	22	170	90	18	100	60	2.8
11	44	25	178	90	22	100	60	4
16	54	32	230	120	25	110	65	7.1
21.7	86.8	38	267	135	30	180	100	13.3
28.4	113.6	45	305	152	33	180	100	18.9
35	140	50	350	190	40	180	100	27.8
45	180	57	405	200	50	200	110	44.5
60	240	72	460	250	50	200	110	65.6
100	400	82	460	260	70	430	220	139
120	480	89	610	305	72	430	220	173.2

Features

1. The WLL should be clearly marked.
2. The safety catch should be in place and functioning correctly.
3. The hook should be checked for any distortion, cracking and excessive wear or corrosion.

NOTE: The wear on the bearing surface of the hook should not exceed 8% of the nominal dimension.
4. Check that the opening of the hook is within the manufacturers parameters. If the hook is opened excessively it is a sign that it has been point loaded or overloaded.
5. Moving parts such as release cams should be checked for free movement.
6. If the hook is a ball bearing swivel hook check that the hook is swivelling freely and that the bearing is not making any unusual noises. Unusual noises are often a sign of bearing fatigue or bearing failure.
7. If the hook has a threaded machined shank ensure that the thread is in good order and that the nut is turning freely on the thread.

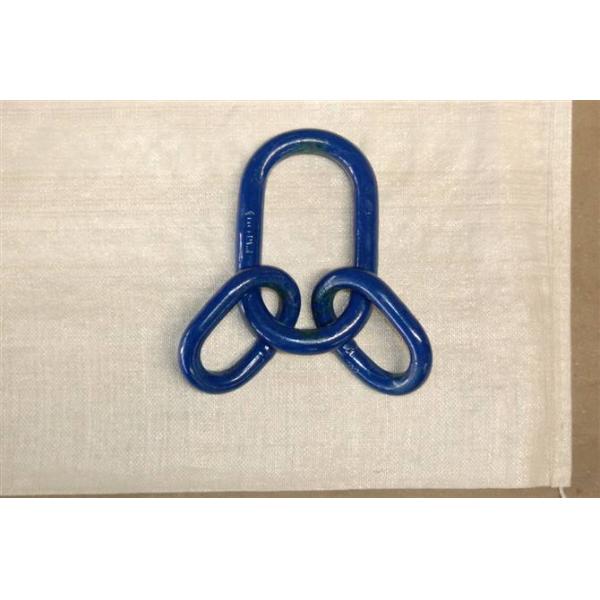

Product show
