20m/Min Electric Wire Rope Hoist 5t For Mining Shipyard

Chongqing Shanyan Crane Machinery Co., Ltd.
Contact Now

20m/Min Electric Wire Rope Hoist 5t For Mining Shipyard

  • 1
  • 2
  • 3

Brand Name : JCYC

Model Number : CD1/MD1

Certification : CE ISO9001 manufacturing licence

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : D/A, D/P, Western Union, T/T, L/C, MoneyGram

Supply Ability : 1000pcs per month

Delivery Time : 30 working day

Packaging Details : Plywood Case

Name : Electric Wire Rope Hoist

Capacity : 1t-32t

Lifting speed : 8(0.8)m/min

Girder : Single girder / double girder

Rail Type : I-Type, H-Type Rail

Travel speed : 20 m/min

Voltage : 380V/440V

Color : As per request

Contact Now

Running Speed 20m/min Electric Wire Rope Hoist 5t For Mining and Shipyard

Brief overview

The electric wire rope hoist CD1/MD1 model have features of compact structure, light weight, small size and easy operation. It can be
used not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the
single-grider crane, the double-grider crane, the cantilever crane and the gantry cranes etc. The eletric hoist model MD1 with double
lifting speed which should be used in case where the hoist model CD1 can not meet the requirements for fine abjustments during
recision operations.

Main characteristics

* Model CD1, MD1 electric wire rope hoist is a small sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm crane.

* With slight modification, it can also be used as a winch.
* It is widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
* Model CD1 electric hoist has only normal speed, which can satisfy normal application.
* Model MD1 electric hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools. etc.

Advantages

> Motor: Hoist Motor is a taper type rotor motor with braking; it is one of the best quality motors, which has bigg er torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque.

> Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.

> Wire Rope: Hoisting ropes comply with the exporting standards. The leading rope taken by the drum does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six.

> Rope Drum: Grooved hoist Drum, seamless pipe of adequate length to be wounded in one layer and to provid eproper
support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.

> Electric apparatus controlling system: Model CD1 and MD1 hoist is composed of the contactor box, controlling switch, cut-off limiter, the working voltage of controlling switch is 380V, 36V or 24V(safety voltage).

> Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of our company is thicken and dilated, so that it is not easy to be damaged.

> Hook:The Hook Block is tested to 150 % of full load before assembly.

Technical configuration

Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Dia.of Wire Rope (mm) I Beam Track Type Working Duty Lifting Motor
Power(kw) R.P.M ( r/min)
CD1-0.25 0.25 3.6.9.12.18 8 20 6*19 3.6 16-22b M3 0.4 1380
CD1-0.5 0.5 3.6.9.12.18 8 20 6*37+1 4.8 16-28b M3 0.8 1380
CD1-1 1 3.6.9.12.18 8 20 6*37+1 7.4 16-28b M3 1.5 1380
CD1-2 2 3.6.9.12.18 8 20 6*37+1 11 20a-32c M3 3 1380
CD1-3 3 3.6.9.12.18 8 20 6*37+1 13 20a-32c M3 4.5 1380
CD1-5 5 3.6.9.12.18 8 20 6*37+1 15 25a-63c M3 7.5 1380
CD1-10 10 3.6.9.12.18 7 20 6*37+1 15 25a-63c M3 13 1400
CD1-16 16 3.6.9.12.18 3.5 20 6*37+1 15 45a-63c M2 13 1400
CD1-20 20 3.6.9.12.18 3.5 20 6*37+1 20 50a-63c M2 13 1400



Notes

A. The standard lifting height is 6, 9, 12, 18, 24, 30 and 36 meters.

B. The lifting speed can be single speed or double speed, even multi-speed with frequency inverters.
C. The suitable rail for the low-headroom hoist is H-type rail, and I-type rail is also available..
D. The recommended rope reeving of this kind of hoist is 2/1, 4/2 or 4/1.
E. The normal traveling speed is 20m/min, and 12.5, 16, 25, 30, 45m/min by request.
F. The normal rail gauge of the double-girder is 1200, 1500, 1800, 2100 and 2300mm.

Product show:

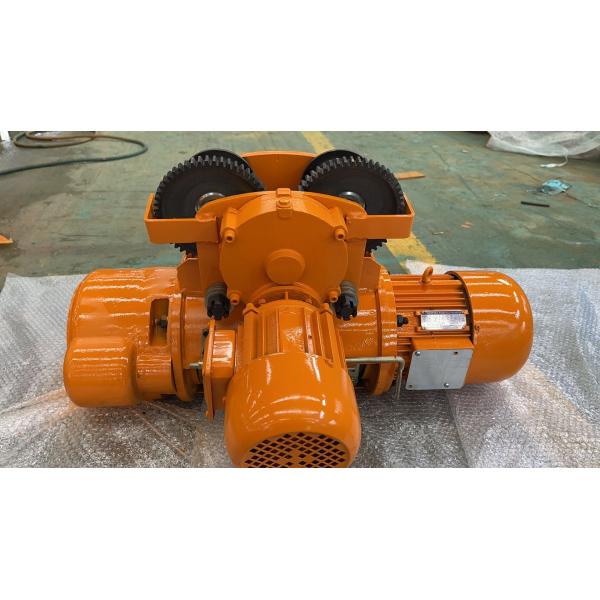

20m/Min Electric Wire Rope Hoist 5t For Mining Shipyard
