PA1000 1000KG 1T Fixed Type Mini Electric Wire Rope Hoist
Product Details
1. Mini hoist capacity is from 100kg to 1200kg. Single hook and double hook lifting available.
2. Mini hoist has a large range of application areas. Because it is portable and convenient, porpular be used in areas like home, factory, warehouse, workshop, harbors, airport etc. for lifting and construction.
3. PA mini hoist with 100% pure copper motor, good cooling durable and energy efficient.
4. Mini electric wire rope hoist handle with emergency button.
5. Mini hoist with down and upper limiter.
6. The wire rope of mini electric hoist is anti-rotary wire rope with high strength.
7. Mini electric hoist with longer stator and rotor.
8. Thicken A4 shell to protect the mini electric hoist.
9. CE certificate available for mini electric hoist.
Product parameters
| Model | Method of Use | Rated
Volt
(v) | Input
Power
(w) | Rated
Capacity
(kg) | Lifting
Speed
(m/min) | Lifting
Height
(m) | Qty/CTN
PCS | Packing
Size
(cm) | G.W/N.W
(kg) |
| PA200A | Single-Hook | AC
220/230V
50/60Hz | 480 | 100 | 10 | 12 | 2 | 38×32×25 | 22.5/22 |
| Double-Hook | 200 | 5 | 6 |
| PA250A | Single-Hook | 510 | 125 | 10 | 12 | 23/22 |
| Double-Hook | 250 | 5 | 6 |
| PA300A | Single-Hook | 600 | 150 | 10 | 12 | 23.5/23 |
| Double-Hook | 300 | 5 | 6 |
| PA400A | Single-Hook | 950 | 200 | 10 | 12 | 45×34×27 | 33/32 |
| Double-Hook | 400 | 5 | 6 |
| PA500A | Single-Hook | 1020 | 250 | 10 | 12 | 33.5/32.5 |
| Double-Hook | 500 | 5 | 6 |
| PA600A | Single-Hook | 1200 | 300 | 10 | 12 | 35/34 |
| Double-Hook | 600 | 5 | 6 |
| PA800A | Single-Hook | 1300 | 400 | 8 | 12 | 38/37 |
| Double-Hook | 800 | 4 | 6 |
| PA1000A | Single-Hook | 1600 | 500 | 8 | 12 | 1 | 54×25×32 | 32/31 |
| Double-Hook | 1000 | 4 | 6 |
Advantages
1.high-quality heat-aluminum shell , junction box,220V, household electrical plug
2.Thicken fan design,more signifcant thermal dissipation, estend usage time.
3. Limit switch when the bound board hits the limiting stopper, the elevator will automatically stop the jop and improve greatly work safety
4.gear and gear shaft are used by 40Cr or Cr MnTi steel ,forging processing with heat treatment.
5.comfortabel standard handle ,simple button, easy operation.
6.Copper wire can be limited to reduce the accident rate caused by bad weather or overload use with good anti-oxidation, corrosion-resistant and stable performance.

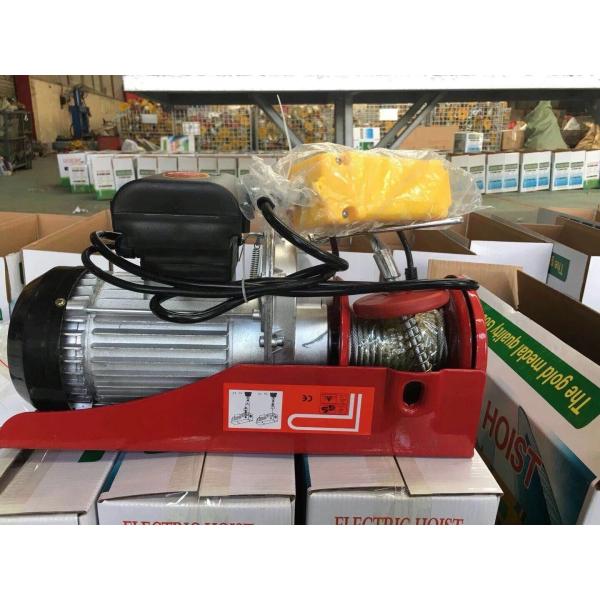

Product Photos Show
|
|
PA1000 1000KG 1T Fixed Type Mini Electric Wire Rope Hoist Images
|
