Yellow Color Crane End Carriage 1t Single Girder Milling Drilling

  • 1
  • 2

Brand Name : JCYC

Model Number : GL

Certification : CE & ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 to 300 sets per week

Delivery Time : 15 to 20 working days

Packaging Details : Plywood case

Product name : Top Running End Carriage

Feature : General single girder top running end carriage

Crane capacity : 1t to 20t

Motor power : 0.3-1.5kw x2

Span : Customized

Color : As per request

Contact Now

European Model End Carriage YellowColor 1t To 20t With Customized Span


Specification:

End carriage use rectangular steel tube manufacturing module , buffer motor drive, forged wheel, using milling of various customized machine, and disposable completes the opening , boring , milling drilling. You only need to joint crane girder and the end carriage corrected, high cost performance, so that your crane manufacturing , installation and maintenance is very easy.
A complete set of end carriage including wheels, motors, main beam connecting plates, main beam connecting bolts, stamping plates , polyurethane buffers and so on.

Product Details:

Yellow Color Crane End Carriage 1t Single Girder Milling Drilling

Yellow Color Crane End Carriage 1t Single Girder Milling Drilling

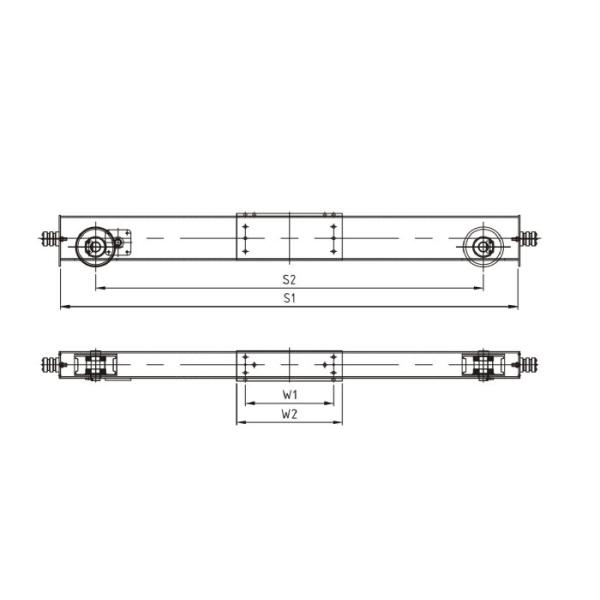

Model Crane Rectangular
Steel tube		 Wheel Size Motor power S1
(mm)		 S2
(mm)		 W1
(mm)		 W2
(mm)
GL125-15 1t-7.5m 150*150*6 W125*60 0.3KW*2 1500 1300 400 500
GL125-20 1t-11.5m 2000 1800 400 500
GL125-25 1t-16.5m 2500 2300 400 500
GL160-15 2t/3t-7.5m 150*200*8 W160*70 0.4KW*2 1500 1200 400 500
GL160-20 2t/3t-11.5m 2000 1700 400 500
GL160-25 2t/3t-16.5m 2500 2200 400 500
GL160-30 2t/3t-22.5m 3000 2700 500 600
GL160-35 2t/3t-28.5m 3500 3200 600 700
GL200-20 5t-11.5m 150*250*8 W200*70 0.4KW*2 2000 1700 400 500
GL200-25 5t-16.5m 2500 2200 400 500
GL200-30 5t-22.5m 0.75KW*2 3000 2700 500 600
GL200-35 5t-28.5m 3500 3200 600 700
GL250-20 10t-11.5m 200*250*8 W250*80 0.75KW*2 2000 1600 400 500
GL250-25A 10t-16.5m 2500 2100 500 600
GL250-30A 10t-22.5m 1.1KW*2 3000 2600 500 600
GL250-35A 10t-28.5m 3500 3100 700 800
GL250-25B 16t-16.5m 200*300*8 W250*80 1.1KW*2 2500 2100 600 700
GL250-30B 16t-22.5m 3000 2600 700 800
GL250-35B 16t-28.5m 1.5KW*2 3500 3100 700 800
GL315-30 20t-16.5m 200*400*8 W315*90 1.5KW*2 3000 2500 700 800
GL315-35 20t-22.5m 3500 3000 700 800


Yellow Color Crane End Carriage 1t Single Girder Milling Drilling
Yellow Color Crane End Carriage 1t Single Girder Milling Drilling
Yellow Color Crane End Carriage 1t Single Girder Milling Drilling
