10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span

Brand Name : JCYC

Certification : CE, ISO

Place of Origin : China

MOQ : 1

Price : $1998-$19986/pc

Payment Terms : T/T, , Western Union, L/C

Supply Ability : 1000pcs/year

Delivery Time : 7-15 workdays

Product Name : Overhead crane

Crane feature : tight dimension, low building headroom, light dead weight

Work Duty : A5 A6

Girder Type : single or double girder

Working Temperature : -20~40℃

Power supply : 380/415/440V

span : 7.5-25.5m

max capacity : 100ton

Contact Now

Product Application

Overhead Crane

Electric overhead traveling cranes are applicable to transferring, assembly, check and repair as well as load and unload at mechanic processing workshop, subsidiary workshop of metallurgical mills, warehouses, goods yard and power station, etc.

SPECIFICATIONS FOR Bridge Cranes

Span

m

Lifting height

m

Lifting speed

m/min

Total weight

kg

Max wheel load

KN

 Work duty
7.5 6; 9;12 0.8/5 2696 51.85 A5
10.5 6; 9;12 0.8/5 3200 54.44 A5
13.5 6; 9;12 0.8/5 4091 57.7 A5
16.5 6; 9;12 0.8/5 5307 60.83 A5
19.5 6; 9;12 0.8/5 6466 64 A5
22.5 6; 9;12 0.8/5 7694 67.26 A5
25.5 6; 9;12 0.8/5 9309 71.36 A5

10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span

10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span

10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span

10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span

10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span

10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span

Our Company
Our Company
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span
Our Exhibition
Our Exhibition
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span
Our Factory
Our Factory
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span

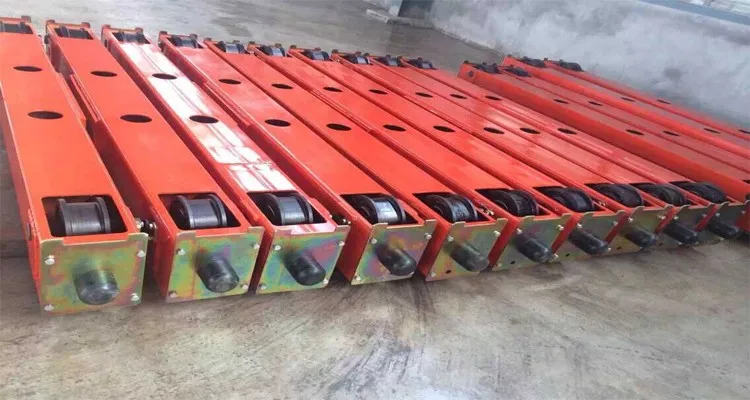

Packing & Delivery
