3 Phase 5T Low Headroom 10T Electric Stainless Steel Chain Hoist

Name: 3 Phase 5T Low Headroom 10T Electric Stainless Steel Chain Hoist
Brand: JCYC/OEM
Price: 1 USD

Wholesale 3 Phase 5T Low Headroom 10T Electric Stainless Steel Chain Hoist from china suppliers

Brand Name : JCYC/OEM

Model Number : SY-A

Certification : CE& ISO

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500pcs per month

Delivery Time : 15 working day

Packaging Details : Plywood Case

Voltage : 220V/380V/440V/660V 50HZ/60HZ

Color : As per request

Capacity : 0.5t-35t

Standard Lifting height : 3m/6m

Speed : Single speed/double speed

Type : Hook type/ trolley type/ low headroom type

Contact Now

3 Phase 5T Low Headroom 10T Electric Stainless Steel Chain Hoist

SY-A ELECTRIC CHAIN HOIST
SY Series Model SYA Electric Chain Hoist
Usage: Lifting, fixing, binding, traction, etc. Well accepted in various industrial fields.
Features and advantages:
1. The main parts of it adopt high quality steel product to ensure durability.
2. Special specifications and marks can be made according to customers' requirements.
3. Various lifting capacity, meet different needs.
4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.
3 Phase 5T Low Headroom 10T Electric Stainless Steel Chain Hoist

Product technical data:

Model	Lifting Capacity(t)	Lifting Height(m)	Lifting Speed(m/min)	Running Speed(m/min)	Lifting Motor			Running Motor			I-Beam(mm)
Model	Lifting Capacity(t)	Lifting Height(m)	Lifting Speed(m/min)	Running Speed(m/min)	Power(kw)	R.P.M(r/min)	Power Supply	Power(kw)	R.P.M(r/min)	Power Supply	I-Beam(mm)
SY-A0.5-1	0.5	3-9	6.8	12.2	0.75	1440	220-440V 50/60HZ 3Phase	0.12	1440	220-440V 50/60HZ 3Phase	58-130
SY-A1-1	1	3-9	6.6	10/20	1.5	1440		0.4	1440		80-160
SY-A1-2	1	3-9	3.4	10/20	0.75	1440		0.4	1440		80-160
SY-A2-1	2	3-9	6.6	10/20	3.0	1440		0.4	1440		82-178
SY-A2-2	2	3-9	3.3	10/20	1.5	1440		0.4	1440		82-178
SY-A3-1	3	3-9	5.4	10/20	3.0	1440		0.4	1440		100-180
SY-A3-2	3	3-9	4.4	11/21	3.0	1440		0.4	1440		100-178
SY-A3-3	3	3-9	2.4	11/21	1.5	1440		0.4	1440		110-178
SY-A5-2	5	3-9	2.7	10/20	3.0	1440		0.75	1440		110-180
SY-A7.5-3	7.5	3-9	1.8	10/20	3*2	1440		0.75	1440		120-180
SY-A10-4	10	3-9	2.7	10/20	3*2	1440		0.75	1440		150-202
SY-A15-6	15	3-9	1.9	10/20	3*2	1440		0.75*2	1440		150-220
SY-A20-8	20	3-9	1.4	10/20	3*2	1440		0.75*2	1440		150-220
SY-A25-8	25	3-9	1.1	10/20	3*2	1440		0.75*2	1440		150-220
SY-A30-10	30	3-9	0.9	10/20	3*2	1440		0.75*2	1440		150-220
SY-A35-16	35	3-9	0.7	10/20	3*2	1440		0.75*2	1440		150-220

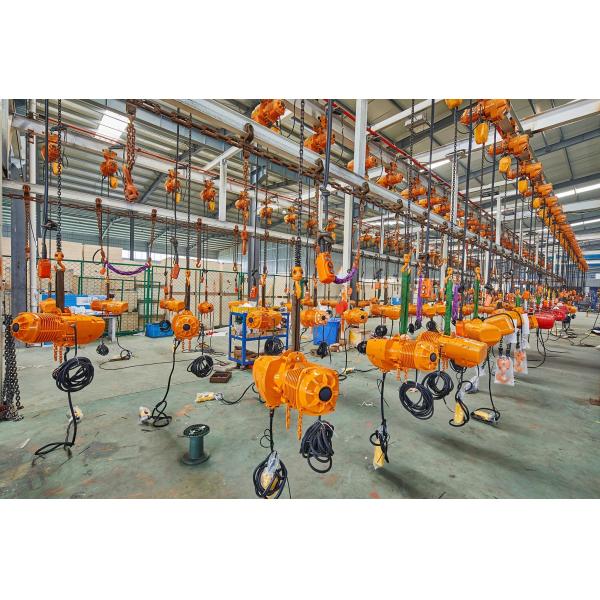

3 Phase 5T Low Headroom 10T Electric Stainless Steel Chain Hoist Images
