500kg 1t 2t Small Construction Electric Wire Rope Winch

Product Categories
Chongqing Shanyan Crane Machinery Co., Ltd.
Contact Now

500kg 1t 2t Small Construction Electric Wire Rope Winch

  • 1
  • 2
  • 3

Brand Name : JCYC / OEM

Model Number : KCD

Certification : CE & ISO

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 1000pcs per month

Delivery Time : 15 to 20 working days

Packaging Details : Plywood Case

Product : 500kg 1t 2t Small Construction Equipment Electric Winch

Shell : Aluminum shell

Hook : Single/double hook

Capacity : 250kg -5000kg

Lifting height : 1-100 meters

Type : foot-mounted or with trolley

Contact Now

500kg 1t 2t Small Construction Equipment Electric Winch

Product description:

KCD type electric hoist winch is a kind of electric winch, widely used in the construction industry, with the feature of stable and reliable operation, hoisting height is can reach 100 meter.

Applies to industrial enterprise, mining company, normal factory, workshop, railway, sea port, warehouse, stock ground and so on. This KCD winch is for any angle of handing, lifting loading and unloading, it is the common machinery for lifting work in factory and warehouse and individuals.

Adavantages of KCD electric winch:

- Fast installation.
- Convenience in operation.
- Low noise level.
- Fast braking.
- Big rope capacity - to 100 meters (that allows to apply them to raising of freights at repair of high-floor buildings).
- Existence of a rope with a hook in a set.

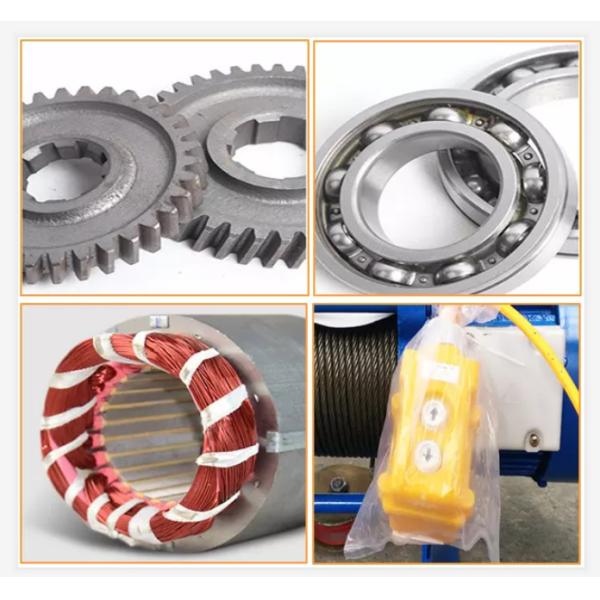

Product configuration:
500kg 1t 2t Small Construction Electric Wire Rope Winch
Alluminum shell electric hoist winch
500kg 1t 2t Small Construction Electric Wire Rope Winch

Wire Rope Fixing: No escape of wire rope from the drum by means of P.T.screw device.

Drum Transmission: The shaft direct friving drum provides rope replacement and alteration

of rotation with easy.

Electromagnetic: Designed for both static and dynamic loading. Brake will automatically apply

in the event of power cut.Large friction surface area. No adjustments or serving requirement.

Gear Box: Provides strength.durability and non-worry of breakage of structure.

Special Motor: Insulated B,with the features of big start torque,small inertia,lower temperature

rise,it can work frequenntly for a long time.

Driving Gear: The heat treated gear with bearings features durable performance and anti-wear.
Machine Fixture: It is made of super armor plate.used for suspender,lifter and girder.

Technical parameters:
Model KCD-300~600kg KCD-500~1000kg KCD-750~1500kg KCD-1~2T
Capacity 600kg 1000kg 1500kg 2000kg
Lifting speed 7-14m/min 6-12m/min 8-16m/min 8-16m/min 8-16m/min
Power 0.6KW 1.5KW 2.0KW 3.0KW
Motor R.P.M 1380 1380 1380 1380
Voltage 380v 380v 380v 380v
Lifting height 60M 1-100M 100-150M 100-200M
Wire rope type 5.0*6*19 D-6*19-6 6*19*7.7 6*19*10
Weight 35kg 50kg 60kg 110kg

Questions before make quotation:

1. Purpose of the winch, lifting or pulling?
2. Where will you use the winch? construction, mine or marine?
3. Capacity?
4. Rope volume?
5. Requirement for rope speed?
6. Voltage?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.

Factory show:

500kg 1t 2t Small Construction Electric Wire Rope Winch

500kg 1t 2t Small Construction Electric Wire Rope Winch500kg 1t 2t Small Construction Electric Wire Rope Winch
