20t Suspended Overhead Bridge Crane End Carriage

Suspended Crane End Carriage for Suspended Overhead Bridge Crane


Brief Introduction

Suspended Crane End Carriage is made from rectangular tube, transmission mechanism use gear reducer motor,
equipped with the open pinion wheel or hollow shaft wheel. Wheel tread surface heat treatment.Gear motor have Chinese brand,Taiwan brand,German nord,SEW or ABM brand. voltage from 3phase ,220v-600v, 50hz/60hz.
Travel speed from 10m/min to 40m/min.Wheel material is 42CrMo, ductile iron, or Si-Mn alloy steel.Only need to weld the main beam and end beam after correction.

Technical parameters

Four types of Bridge Crane End Carriage

1.Single girder end carriage
Single Girder End Carriage is suitable for Crane with Capacity less than 32 tons. Its structure is simple, and its maintenance is convenient. It has two high torque driving motors, which is suitable for most of the use environment.

2.Double girder end carriage
Double Girder is suitable for double girder cranes. The rated load is greater, and it is used in high load environment. It has a traveling wheel installed, running smoothly, and having less noise.

3.Undehung end carriage
Undehang End Carriage is used in Suspended cranes, compared to ordinary End Carriage, and its wheels are specially designed for suspension, and its weight is lighter.

4.Double track power trolley
Double Track Power Trolley has a larger capacity and more than 50T. Two high torque crane motor are used in double beam driving.

Those four types of end carriage suitable for a variety of working conditions, including factories, workshops, outdoor, warehouses, etc.
Product details:

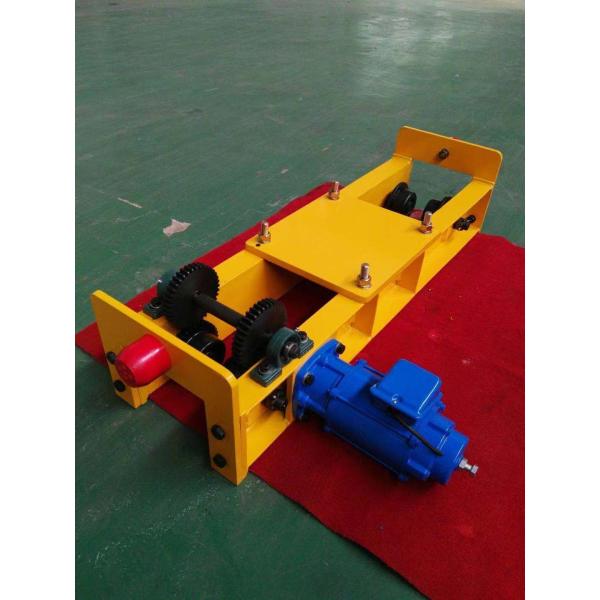

Overhead Bridge Crane End Carriage

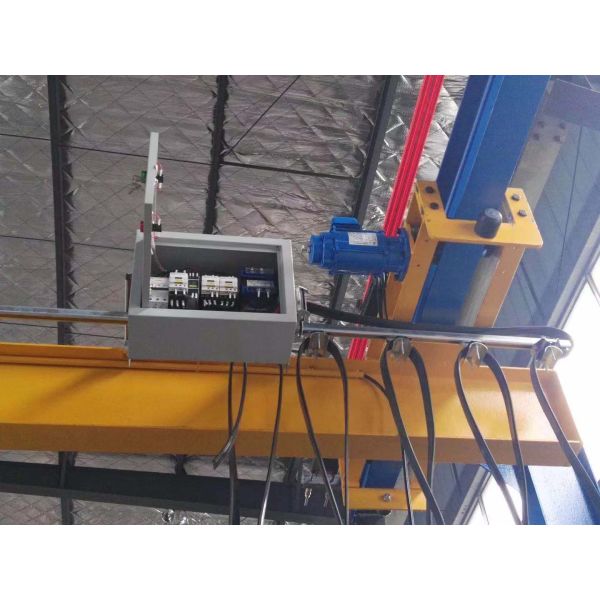

Suspended Bridge Crane End Carriage

20t Overhead Crane End Carriage

20t Suspended Overhead Bridge Crane End Carriage Images
