Red One Speed 3m to 24m 1t to 25T 8 m/min Electric Lifting Wire Rope Hoist
Producet Technical Data:
| Model | Lifting Capacity(t) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope(mm) | (H)Lifting Height |
| Power(kw) | R.P.M(r/min) | Power Supply |
| CD1-0.25 | 0.25 | 8 | 20 | 6*19 | 3.6 | 0.4 | 1380 | 220-440V 50/60HZ 3 Phase |
| CD1-0.5 | 0.5 | 8 | 20 | 6*37+1 | 4.8 | 0.8 | 1380 |
| CD1-1 | 1 | 8 | 20 | 6*37+1 | 7.4 | 1.5 | 1380 |
| CD1-2 | 2 | 8 | 20 | 6*37+1 | 11 | 3 | 1380 |
| CD1-3 | 3 | 8 | 20 | 6*37+1 | 13 | 4.5 | 1380 |
| CD1-5 | 5 | 8 | 20 | 6*37+1 | 15 | 7.5 | 1380 |
| CD1-10 | 10 | 7 | 20 | 6*37+1 | 15 | 13 | 1380 |
| CD1-16 | 16 | 3.5 | 20 | 6*37+1 | 15 | 13 | 1380 |
| CD1-20 | 20 | 3.5 | 20 | 6*37+1 | 20 | 13 | 1380 |
| | | | | | | | | |
| Model | Lifting Capacity(t) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope(mm) | (H)Lifting Height |
| Power(kw) | R.P.M(r/min) | Power Supply |
| MD1-0.25 | 0.25 | 8/0.8 | 20 | 6*19 | 3.6 | 0.4 | 1380 | 220-440V 50/60HZ 3 Phase |
| MD1-0.5 | 0.5 | 8/0.8 | 20 | 6*37+1 | 4.8 | 0.2/0.8 | 1380 |
| MD1-1 | 1 | 8/0.8 | 20 | 6*37+1 | 7.4 | 0.2/1.5 | 1380 |
| MD1-2 | 2 | 8/0.8 | 20 | 6*37+1 | 11 | 0.4/3 | 1380 |
| MD1-3 | 3 | 8/0.8 | 20 | 6*37+1 | 13 | 0.4/4.5 | 1380 |
| MD1-5 | 5 | 8/0.8 | 20 | 6*37+1 | 15 | 0.8/7.5 | 1380 |
| MD1-10 | 10 | 7/0.7 | 20 | 6*37+1 | 15 | 1.5/13 | 1380 |
| MD1-16 | 16 | 3.5/0.35 | 20 | 6*37+1 | 15 | 1.5/13 | 1380 |
| MD1-20 | 20 | 3.5/0.35 | 20 | 6*37+1 | 20 | 1.5/13 | 1380 |
CD1 MD1 Model, Electric Wire Rope Hoist with Trolley or Fixed Type
Small-sized lifting equipment which can be mounted on single beam, bridge, gantry and arm cranes.
Widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Features and advantages:
1. CD1/MD1 model can be used as a winch after slight modification.
2. Choose single or double lifting speed, even multi-speed with frequency inverters.
3. The suitable rail for low-headroom hoist is H-type rail, and I-type also is available.
4. The recommended rope reeving of the kind of hoist is 2/1, 4/2 or 4/1.
5. The normal traveling speed is 20m/min, or 12.5m/min, 16m/min, 25m/min, 32m/min by request.
6. The normal rail gauge of the double-girder hoist is 1200mm, 1500mm, 1800mm, 2100mm and 2300mm.
7. The normal traveling speed is 20m/min, or 30m/min, 45m/min by request.
8. CD1 has only a normal speed which can satisfy Normal application.
9. MD1 provides two speeds: Normal speed and Low speed. It can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc at a low speed.

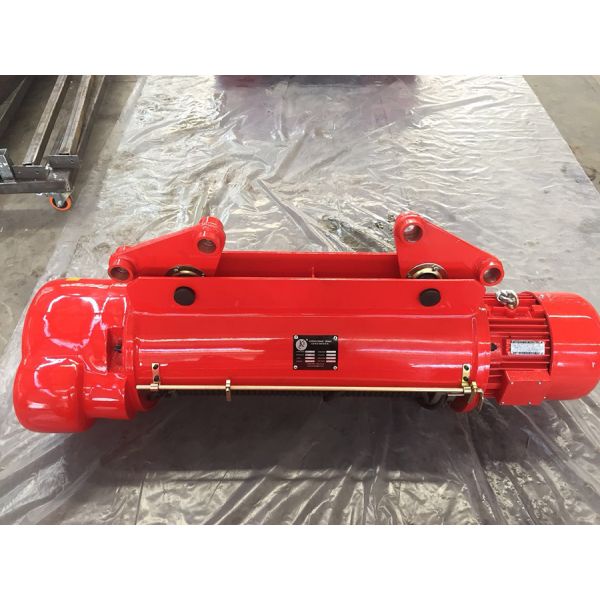

Product show:
